15613布锥管外螺纹60°内锥面 |
|
|
|
代 号
PART NO. |
螺纹 E
THREAD E |
胶 管 HOSE BORE |
尺寸 DIMENSIONS |
| 公称内径DN |
标号DASH |
C |
S1 |
| 15613-12-12 |
Z3/4"-14 |
19 |
3/4" |
12 |
19 |
30 |
| -16-16 |
Z 1"-11.5 |
25 |
1" |
16 |
24 |
36 |
| -20-20 |
Z1.1/4"-11.5 |
32 |
1-1/4" |
20 |
25 |
46 |
| -24-24 |
Z1.1/2"-11.5 |
38 |
1-1/2" |
24 |
26 |
50 |
| -32-32 |
Z 2"-11.5 |
51 |
2" |
32 |
26 |
65 |
16713

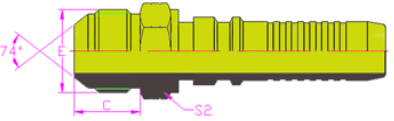

美制JIC外螺纹74°外锥面
JIC MALE 74°CONE
代 号
PART NO. |
螺纹 E
THREAD E |
胶 管 HOSE BORE |
尺寸 DIMENSIONS |
| 公称内径DN |
标号DASH |
C |
S1 |
| 16713-12-12 |
1.1/16"X12 |
19 |
3/4" |
12 |
22 |
30 |
| -16-16 |
1.5/16"X12 |
25 |
1" |
16 |
23 |
36 |
| -20-20 |
1.5/8"X12 |
32 |
1-1/4" |
20 |
24.3 |
46 |
| -24-24 |
1.7/8"X12 |
38 |
1-1/2" |
24 |
27.5 |
50 |
| -32-32 |
2.1/2"X12 |
51 |
2" |
32 |
34 |
65 | |
| |
|
|
|
| |
|
|
