8764245°SAE法兰 6000 PSI |
|
|
|
代 号
PART NO. |
螺纹 E
THREAD E |
胶 管 HOSE BORE |
尺寸 DIMENSIONS |
| 公称内径DN |
标号DASH |
D1 |
H |
D2 |
K |
| 87642-08-08 |
1/2" |
13 |
1/2" |
08 |
31.7 |
24.7 |
23.9 |
7.9 |
| -12-12 |
3/4" |
19 |
3/4" |
12 |
41.3 |
31.8 |
31.7 |
8.9 |
| -16-12 |
1" |
19 |
3/4" |
12 |
47.6 |
33.2 |
38 |
9.6 |
| -16-16 |
1" |
25 |
1" |
16 |
47.6 |
34 |
38 |
9.6 |
| -20-16 |
1.1/4" |
25 |
1" |
16 |
54 |
35.4 |
43.6 |
10.4 |
| -20-20 |
1.1/4" |
32 |
1-1/4" |
20 |
54 |
39.4 |
43.6 |
10.4 |
| -24-20 |
1.1/2" |
32 |
1-1/4" |
20 |
63.5 |
41.5 |
50.8 |
12.7 |
| -24-24 |
1.1/2" |
38 |
1-1/2" |
24 |
63.5 |
45.5 |
50.8 |
12.7 |
| -32-24 |
2" |
38 |
1-1/2" |
24 |
79.4 |
45.5 |
66.5 |
12.7 |
| -32-32 |
2" |
51 |
2" |
32 |
79.4 |
52.7 |
66.5 |
12.7 |

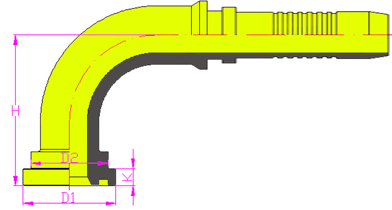

 87692
90°SAE法兰 6000 PSI
90°SAE FLANFE 3000 PSI
代 号
PART NO. |
螺纹 E
THREAD E |
胶 管 HOSE BORE |
尺寸 DIMENSIONS |
| 公称内径DN |
标号DASH |
D1 |
H |
D 2 |
K |
| 87692-08-08 |
1/2" |
13 |
1/2" |
08 |
31.7 |
49 |
23.9 |
7.9 |
| -12-10 |
3/4" |
16 |
5/8" |
10 |
41.3 |
56.5 |
31.7 |
8.9 |
| -12-12 |
3/4" |
19 |
3/4" |
12 |
41.3 |
66 |
31.7 |
8.9 |
| -12-16 |
3/4" |
25 |
1" |
16 |
41.3 |
71.5 |
31.7 |
8.9 |
| -16-12 |
1" |
19 |
3/4" |
12 |
47.6 |
68 |
38 |
9.6 |
| -16-16 |
1" |
25 |
1" |
16 |
47.6 |
73.5 |
38 |
9.6 |
| -16-20 |
1" |
32 |
1-1/4" |
20 |
47.6 |
84.5 |
38 |
9.6 |
| -20-16 |
1.1/4" |
25 |
1" |
16 |
54 |
75.5 |
43.6 |
10.4 |
| -20-20 |
1.1/4" |
32 |
3/4" |
20 |
54 |
86.5 |
43.6 |
10.4 |
| -20-24 |
1.1/4" |
38 |
1-1/2" |
24 |
54 |
86.5 |
43.6 |
10.4 |
| -24-20 |
1.1/2" |
32 |
1-1/4" |
20 |
63.5 |
89.5 |
50.8 |
12.7 |
| -24-24 |
1.1/2" |
38 |
1-1/2" |
24 |
63.5 |
103 |
50.8 |
12.7 |
| -24-32 |
1.1/2" |
51 |
2" |
32 |
63.5 |
116.4 |
50.8 |
12.7 |
| -32-20 |
2" |
32 |
1-1/4" |
20 |
79.4 |
89.5 |
66.5 |
12.7 |
| -32-24 |
2" |
38 |
1-1/2" |
24 |
79.4 |
103 |
66.5 |
12.7 |
| -32-32 |
2" |
51 |
2" |
32 |
79.4 |
123.3 |
66.5 |
12.7 | |
| |
|
|
|
| |
|
|
