26713美制JIC内螺纹74°内锥面 |
|
|
|
代 号
PART NO. |
螺纹 E
THREAD E |
胶 管 HOSE BORE |
尺寸 DIMENSIONS |
| 公称内径DN |
标号DASH |
C |
S2 |
| 26713-12-12 |
1.1/16"x12 |
19 |
3/4" |
12 |
15 |
32 |
| -16-16 |
1.5/16"x12 |
25 |
1" |
16 |
16 |
41 |
| -20-20 |
1.5/8"x12 |
32 |
1-1/4" |
20 |
17 |
50 |
| -24-24 |
1.7/8"x12 |
38 |
1-1/2" |
24 |
20 |
60 |
| -32-32 |
2.1/2"x12 |
51 |
|
32 |
23.5 |
75 |
26743

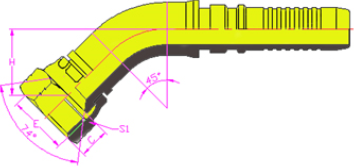

45°美制JIC内螺纹74°内锥面
45°JIC FEMALE 74°CONE SEAT
代 号
PART NO. |
螺纹 E
THREAD E |
胶 管 HOSE BORE |
尺寸 DIMENSIONS |
| 公称内径DN |
标号DASH |
C |
S2 |
H |
| 26743-12-12 |
1.1/16"x12 |
19 |
3/4" |
12 |
15 |
32 |
30 |
| -16-16 |
1.5/16"x12 |
25 |
1" |
16 |
16 |
41 |
31.5 |
| -20-20 |
1.5/8"x12 |
32 |
1-1/4" |
20 |
17 |
50 |
36.6 |
| -24-24 |
1.7/8"x12 |
38 |
1-1/2" |
24 |
20 |
60 |
41.6 |
| -32-32 |
2.1/2"x12 |
51 |
2" |
32 |
23.5 |
75 |
49 | |
| |
|
|
|
| |
|
|
