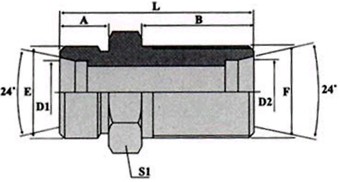

X6A4公制外螺纹24°轻系列过板接头 |
|
|
|
|
代 号
PART NO. |
永华代 号
WINER PART NO. |
螺纹 THREAD |
管子外径TUBE O.D. |
尺寸 DIMENSIONS |
| E |
F |
D1 |
D2 |
A |
B |
S1 |
L |
| X6A4-12 |
6C-12 |
M12X1.5 |
M12X1.5 |
6 |
6 |
10 |
34 |
17 |
48 |
| X6A4 -14 |
-14 |
M14X1.5 |
M14X1.5 |
8 |
8 |
10 |
34 |
19 |
48 |
| X6A4-16 |
-16 |
M16X1.5 |
M16X1.5 |
10 |
10 |
11 |
35 |
22 |
52 |
| X6A4 -18 |
-18 |
M18X1.5 |
M18X1.5 |
12 |
12 |
11 |
36 |
24 |
53 |
| X6A4 -22 |
-22 |
M22X1.5 |
M22X1.5 |
15 |
15 |
12 |
38 |
27 |
57 |
| X6A4-26 |
-26 |
M26X1.5 |
M26X1.5 |
18 |
18 |
12 |
40 |
32 |
61 |
| X6A4-30 |
-30 |
M30X2 |
M30X2 |
22 |
22 |
14 |
42 |
36 |
66 |
| X6A4 -36 |
-36 |
M36X2 |
M36X2 |
28 |
28 |
14 |
43 |
41 |
69 |
| X6A4 -45 |
-45 |
M45X2 |
M45X2 |
35 |
35 |
16 |
47 |
50 |
76 |
| X6A4-52 |
-52 |
M52X2 |
M52X2 |
42 |
42 |
16 |
47 |
60 |
77 | |
| |
|
|
|
| |
|
|
