X6A5公制外螺纹24°重系列过板接头 |
|
|
|
代 号
PART NO. |
永华代 号 WINENR PART NO. |
螺纹 THREAD |
管子外径TUBE O.D. |

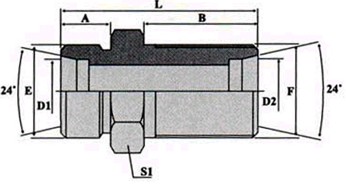

尺寸 DIMENSIONS |
| E |
F |
D1 |
D2 |
A |
B |
S1 |
L |
| X6A5-14 |
6D-14 |
M14x1.5 |
M14X1.5 |
6 |
6 |
12 |
36 |
19 |
55 |
| X6A5-16 |
-16 |
M16x1.5 |
M16X1.5 |
8 |
8 |
12 |
36 |
22 |
56 |
| X6A5-18 |
-18 |
M18X1.5 |
M18X1.5 |
10 |
10 |
12 |
37 |
24 |
59 |
| X6A5-20 |
-20 |
M20X1.5 |
M20X1.5 |
12 |
12 |
12 |
38 |
27 |
60 |
| X6A5-22 |
-22 |
M22X1.5 |
M22X1.5 |
14 |
14 |
14 |
40 |
30 |
65 |
| X6A5-24 |
-24 |
M24X1.5 |
M24X1.5 |
16 |
16 |
14 |
40 |
32 |
65 |
| X6A5-30 |
-30 |
M30X2 |
M30X2 |
20 |
20 |
16 |
44 |
41 |
72 |
| X6A5-36 |
-36 |
M36X2 |
M36X2 |
25 |
25 |
18 |
47 |
46 |
79 |
| X6A5-42 |
-42 |
M42X2 |
M42X2 |
30 |
30 |
20 |
51 |
50 |
86 |
| X6A5-52 |
-52 |
M52X2 |
M52X2 |
38 |
38 |
22 |
53 |
65 |
91 |
注：订货时，若需卡套、卡套螺母，则在整个代号后加字“RN”，若需锁母，则在整个代号后加字母“LN”。 |
| |
|
|
|
| |
|
|
