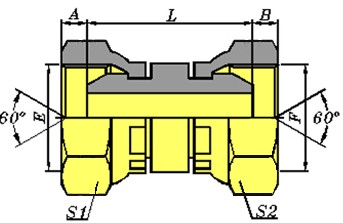

X3A6公制内螺纹60°/公制内螺纹60° |
|
|
|
|
代 号
PART NO. |
永华代 号
WINENR PART NO. |
螺 纹 THREAD |
尺 寸 DIMENSIONS |
|
E |
F |
L |
A |
B |
S1 |
S2 |
| X3A6-12 |
3M-12 |
M12X1.5 |
M12X1.5 |
25 |
5 |
5 |
17 |
17 |
| X3A6-14 |
3M-14 |
M14X1.5 |
M14X1.5 |
26 |
5.5 |
5.5 |
19 |
19 |
| X3A6-16 |
3M-16 |
M16X1.5 |
M16X1.5 |
27.5 |
5.5 |
5.5 |
22 |
22 |
| X3A6-18 |
3M-18 |
M18x1.5 |
M18x1.5 |
29 |
5.5 |
5.5 |
24 |
24 |
| X3A6-18-20 |
3M-18-20 |
M18X1.5 |
M20X1.5 |
31.5 |
5.5 |
6.5 |
24 |
27 |
| X3A6-18-22 |
3M-18-22 |
M18X1.5 |
M22X1.5 |
32 |
5.5 |
6 |
24 |
27 |
| X3A6-20 |
3M-20 |
M20X1.5 |
M20X1.5 |
33 |
6.5 |
6.5 |
27 |
27 |
| X3A6-20-22 |
3M-20-22 |
M20X1.5 |
M22X1.5 |
33.5 |
6.5 |
6 |
27 |
27 |
| X3A6-22 |
3M-22 |
M22X1.5 |
M22X1.5 |
34 |
6 |
6 |
27 |
27 | |
| |
|
|
|
| |
|
|
