X2A5公制外螺纹24°/内螺纹24°重系列 |
|
|
|
代 号
PART NO. |
永华代 WINNER PART NO. |
螺纹 THREAD |
管子外径TUBE O.D. |

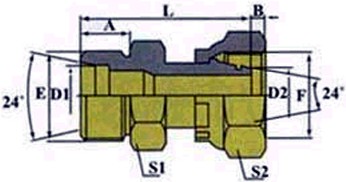

尺寸 DIMENSIONS |
| E |
F |
D1 |
D2 |
A |
B |
S1 |
S2 |
L |
| X2A5-18-20 |
2D-18-20 |
M18X1.5 |
M20X1.5 |
10 |
12 |
12 |
2.5 |
19 |
27 |
42 |
| X2A5-18-22 |
-18-22 |
M18X1.5 |
M22X1.5 |
10 |
14 |
12 |
2.5 |
22 |
27 |
44 |
| X2A5-20-22 |
-20-22 |
M20X1.5 |
M22X1.5 |
12 |
14 |
12 |
2.5 |
22 |
27 |
44 |
| X2A5-20-24 |
-20-24 |
M20X1.5 |
M24X1.5 |
12 |
16 |
12 |
3 |
24 |
30 |
45 |
| X2A5-22-24 |
-22-24 |
M22X1.5 |
M24X1.5 |
14 |
16 |
14 |
3 |
24 |
30 |
47.5 |
| X2A5-22-30 |
-22-30 |
M22X1.5 |
M30X2 |
14 |
20 |
14 |
3 |
30 |
36 |
54 |
| X2A5-24-30 |
-24-30 |
M24X1.5 |
M30X2 |
16 |
20 |
14 |
3 |
30 |
36 |
54 |
| X2A5-24-36 |
-24-36 |
M24X1.5 |
M36X2 |
16 |
25 |
14 |
3 |
36 |
41 |
55 |
| X2A5-30-36 |
-30-36 |
M30X2 |
M36X2 |
20 |
25 |
16 |
3 |
36 |
41 |
57 |
| X2A5-30-42 |
-30-42 |
M30X2 |
M42X2 |
20 |
30 |
16 |
5 |
41 |
50 |
63 |
| X2A5-36-42 |
-36-42 |
M36X2 |
M42X2 |
25 |
30 |
18 |
5 |
41 |
50 |
65 |
| X2A5-36-52 |
-36-52 |
M36X2 |
M52X2 |
25 |
38 |
18 |
6.5 |
50 |
60 |
69 |
| X2A5-42-52 |
-42-52 |
M42X2 |
M52X2 |
30 |
38 |
20 |
6.5 |
50 |
60 |
71 | |
| |
|
|
|
| |
|
|
