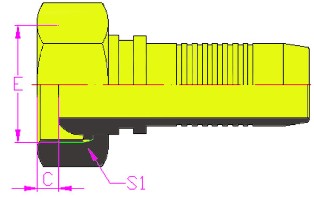

20111-T公制内螺纹球面METRIC FEMALE MULTISEAL |
|
|
|
代 号
PART NO. |
螺纹 E
THREAD E |
胶 管 HOSE BORE |
尺寸DIMENSIONS |
| 公称内径DN |
标号DASH |
C |
S2 |
| 20111-20-06T |
M20X1.5 |
10 |
3/8" |
06 |
5.5 |
27 |
| -24-08T |
M24X1.5 |
12 |
1/2" |
08 |
5 |
30 |
| -26-08T |
M26X1.5 |
12 |
1/2" |
08 |
5.5 |
32 |
| -27-08T |
M27X1.5 |
12 |
1/2" |
08 |
5.5 |
32 |
| -33-12T |
M33X2 |
20 |
3/4" |
12 |
7 |
41 |
| -36-12T |
M36X2 |
20 |
3/4" |
12 |
7 |
41 |
| -36-14T |
M36X2 |
22 |
7/8" |
14 |
7 |
41 |
| -39-14T |
M39X2 |
22 |
7/8" |
14 |
7 |
46 |
| -39-16T |
M39X2 |
25 |
1" |
16 |
7 |
46 |
| -42-16T |
M42X2 |
25 |
1" |
16 |
8.5 |
50 |
| -45-20T |
M45X2 |
32 |
1-1/4" |
20 |
8.5 |
55 |
| -52-20T |
M52X2 |
32 |
1-1/4" |
20 |
9 |
60 |
| -52-24T |
M52X2 |
40 |
1-1/2" |
24 |
9 |
60 |
| -64-32T |
M64X2 |
50 |
2" |
32 |
14 |
75 |
| -78-40T |
M78X2 |
64 |
2-1/2" |
40 |
16 |
90 |
| -90-48T |
M90X2 |
76 |
3" |
48 |
16 |
100 | |
| |
|
|
|
| |
|
|
