20111公制内螺纹球面METRIC FEMALE MULTISEAL |
|
|
|
代 号
PART NO. |

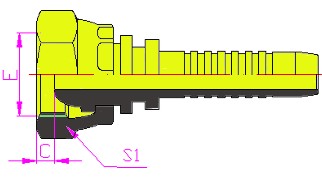

螺纹 E
THREAD E |
胶 管 HOSE BORE |
尺寸 DIMENSIONS |
|
公称内径DN |
标号DASH |
C |
S2 |
|
| 20111-10-03 |
M10X1 |
4 |
3/16" |
03 |
2.5 |
14 |
| -10-04 |
M10X1 |
6 |
1/4" |
04 |
2.5 |
14 |
|
-12-03 |
M12X1.25 |
4 |
3/16" |
03 |
4 |
17 |
| -12-04 |
M12X1.25 |
6 |
1/4" |
04 |
4 |
17 |
| -14-04 |
M14X1.5 |
6 |
1/4" |
04 |
4.5 |
19 |
| -16-04 |
M16X1.5 |
6 |
1/4" |
04 |
4.5 |
22 |
| -16-05 |
M16X1.5 |
8 |
5/16" |
05 |
4.5 |
22 |
| -16-06 |
M16X1.5 |
10 |
3/8" |
06 |
4.5 |
22 |
| -18-05 |
M18X1.5 |
8 |
5/16" |
05 |
4 |
24 |
| -18-06 |
M18X1.5 |
10 |
3/8" |
06 |
4 |
24 |
|
| -20-08 |
M20X1.5 |
12 |
1/2" |
08 |
5.5 |
27 |
| -22-06 |
M22X1.5 |
10 |
3/8" |
06 |
5 |
27 |
| -22-08 |
M22X1.5 |
12 |
1/2" |
08 |
5 |
27 |
| -22-10 |
M22X1.5 |
16 |
5/8" |
10 |
5 |
27 |
| -24-10 |
M24X1.5 |
16 |
5/8" |
10 |
5 |
30 |
| -27-10 |
M27X1.5 |
16 |
5/8" |
10 |
5.5 |
32 |
| -27-12 |
M27X1.5 |
20 |
3/4" |
12 |
5.5 |
32 |
| -30-12 |
M30X1.5 |
20 |
3/4" |
12 |
6 |
36 |
| -33-14 |
M33X2 |
22 |
7/8" |
14 |
7 |
41 |
| -36-16 |
M36X2 |
25 |
1" |
16 |
7 |
41 |
| -42-20 |
M42X2 |
32 |
1-1/4" |
20 |
8.5 |
50 | |
| |
|
|
|
| |
|
|
