X2L71美制JIC外螺纹/英管内螺纹球面 |
|
|
|
|
PART NO. |
永华代 号
WINNER PART NO. |
螺纹 THREAD |
尺 寸 DIMENSIONS |
|
E |
F |
A |
B |
S1 |
S2 |
L |
| X2L71-20 |
2JA-20 |
1.5/8"X12 |
G1.1/4"-11 |
24.3 |
10 |
46 |
50 |
57 |
| X2L71-24 |
-24 |
1.7/8"X12 |
G1.1/2"-11 |
27.5 |
11 |
50 |
55 |
63.5 |
| X2L71-32 |
-32 |
2.1/2"X12 |
G 2"-11 |
34 |
15 |
65 |
70 |
74 |

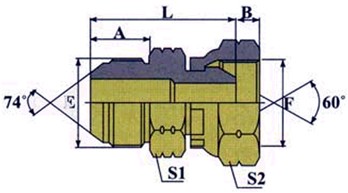

X2L76
美制JIC外螺纹/英管内螺纹60°锥面
JIC MALE / BSP FEMALE 60°CONE
|
代 号
PART NO. |
永华代 号
WINNER PART NO. |
螺纹 THREAD |
尺 寸 DIMENSIONS |
|
E |
F |
A |
B |
S1 |
S2 |
L |
| X2L76-04 |
2JB-04 |
7/16"X20 |
G1/4"-19 |
14 |
5.5 |
12 |
19 |
31 |
| X2L76-04-02 |
-04-02 |
7/16"X20 |
G1/8"-28 |
14 |
5.5 |
14 |
14 |
29 |
| X2L76-04-06 |
-04-06 |
7/16"X20 |
G3/8"-19 |
14 |
6.3 |
17 |
22 |
32.5 |
| X2L76-05-02 |
-05-02 |
1/2"X20 |
G1/8"-28 |
14 |
5.5 |
14 |
14 |
29 |
| X2L76-05-04 |
-05-04 |
1/2"X20 |
G1/4"-19 |
14 |
5.5 |
14 |
19 |
31 |
| X2L76-06 |
-06 |
9/16"X18 |
G3/8"-19 |
14 |
6.3 |
17 |
22 |
32.5 |
| X2L76-06-04 |
-06-04 |
9/16"X18 |
G1/4"-19 |
14 |
5.5 |
17 |
19 |
31 |
| X2L76-06-08 |
-06-08 |
9/16"X18 |
G1/2"-14 |
14 |
7.5 |
19 |
27 |
34 |
| X2L76 -08-04 |
-08-04 |
3/4"X16 |
G1/4"-19 |
16.7 |
5.5 |
22 |
19 |
35.5 |
| X2L76-08-06 |
-08-06 |
3/4"X16 |
G3/8"-19 |
16.7 |
6.3 |
22 |
22 |
37 |
| X2L76-08 |
-08 |
3/4"X16 |
G1/2"-14 |
16.7 |
7.5 |
22 |
27 |
39 |
| X2L76-08-12 |
-08-12 |
3/4"X16 |
G3/4"-14 |
16.7 |
10.9 |
27 |
32 |
42 |
| X2L76-10-08 |
-10-08 |
7/8"X14 |
G1/2"-14 |
19.3 |
7.5 |
24 |
27 |
41.5 |
| X2L76-10 |
-10 |
7/8"X14 |
G5/8"-14 |
19.3 |
9.5 |
24 |
30 |
42 |
| X2L76-12 |
-12 |
1.1/16"X12 |
G3/4"-14 |
22 |
10.9 |
30 |
32 |
47 |
| X2L76 -12-08 |
-12-08 |
1.1/16"X12 |
G1/2"-14 |
22 |
7.5 |
30 |
27 |
46 |
| X2L76-12-16 |
-12-16 |
1.1/16"X12 |
G 1"-11 |
22 |
11.7 |
32 |
41 |
50 |
| X2L76-16 |
-16 |
1.5/16"X12 |
G 1"-11 |
23 |
11.7 |
36 |
41 |
51 |
| X2L76-20 |
-20 |
1.5/8"X12 |
G1.1/4"-11 |
24.3 |
11 |
46 |
50 |
55.5 |
| X2L76-20-16 |
-20-16 |
1.5/8"X12 |
G 1"-11 |
24.3 |
11.7 |
46 |
41 |
53.5 |
| X2L76-24 |
-24 |
1.7/8"X12 |
G1.1/2"-11 |
27.5 |
13 |
50 |
55 |
61.5 |
| X2L76-24-20 |
-24-20 |
1.7/8"X12 |
G1.1/4"-11 |
27.5 |
11 |
50 |
50 |
61 | |
| |
|
|
|
| |
|
|
