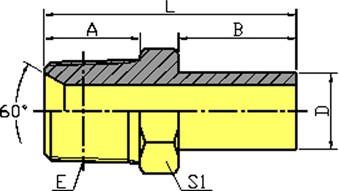

X1F90英锥管外螺纹60/公制卡套式直管 |
|
|
|
|
代 号
PART NO. |
永华代 号
WINNER PART NO. |
螺 纹 THREAD |
管子外径 TUBE O.D |
尺 寸 DIMENSIONS |
|
E |
D |
A |
B |
L |
S1 |
| X1F90-02-06 |
1TW-02-06SP/P |
R1/8"X28 |
6 |
10 |
21 |
37 |
12 |
| X1F90-04-08 |
1TW-04-08SP/P |
R1/4"X19 |
8 |
14.5 |
21 |
41.5 |
15 |
| X1F90-04-10 |
1TW-04-10SP/P |
R1/4"X19 |
10 |
14.5 |
22 |
42.5 |
15 |
| X1F90-04-12 |
1TW-04-12SP/P |
R1/4"X19 |
12 |
14.5 |
22.5 |
43 |
15 |
| X1F90-04-14 |
1TW-04-14SP/P |
R1/4"X19 |
14 |
14.5 |
22 |
42.5 |
15 |
| X1F90-06-10 |
1TW-06-10SP/P |
R3/8"X19 |
10 |
15 |
22 |
43 |
19 |
| X1F90-06-12 |
1TW-06-12SP/P |
R3/8"X19 |
12 |
15 |
22.5 |
43.5 |
19 |
| X1F90-06-14 |
1TW-06-14SP/P |
R3/8"X19 |
14 |
15 |
22 |
43 |
19 |
| X1F90-06-15 |
1TW-06-15SP/P |
R3/8"X19 |
15 |
15 |
24 |
45 |
19 |
| X1F90-06-18 |
1TW-06-18SP/P |
R3/8"X19 |
18 |
15 |
24 |
45 |
19 |
| X1F90-08-12 |
1TW-08-12SP/P |
R1/2"X14 |
12 |
20 |
22.5 |
50.5 |
24 |
| X1F90-08-15 |
1TW-08-15SP/P |
R1/2"X14 |
15 |
20 |
24 |
52 |
24 |
| X1F90-08-16 |
1TW-08-16SP/P |
R1/2"X14 |
16 |
20 |
24.5 |
52.5 |
24 |
| X1F90-08-20 |
1TW-08-20SP/P |
R1/2"X14 |
20 |
20 |
26 |
54 |
24 |
| X1F90-08-22 |
1TW-08-22SP/P |
R1/2"X14 |
22 |
20 |
26 |
54 |
24 |
| X1F90-12-20 |
1TW-12-20SP/P |
R3/4"X14 |
20 |
20 |
26 |
56 |
30 |
| X1F90-12-22 |
1TW-12-22SP/P |
R3/4"X14 |
22 |
20 |
26 |
56 |
30 |
| X1F90-12-25 |
1TW-12-25SP/P |
R3/4"X14 |
25 |
20 |
29.5 |
59.5 |
30 |
| X1F90-12-28 |
1TW-12-28SP/P |
R3/4"X14 |
28 |
20 |
28 |
58 |
30 |
| X1F90-16-25 |
1TW-16-25SP/P |
R1"X11 |
25 |
25.5 |
29.5 |
66 |
36 |
| X1F90-16-28 |
1TW-16-28SP/P |
R1"X11 |
28 |
25.5 |
28 |
64.5 |
36 |
| X1F90-16-35 |
1TW-16-35SP/P |
R1"X11 |
35 |
25.5 |
33 |
69.5 |
36 |
| X1F90-20-30 |
1TW-20-30SP/P |
R1.1/4"X11 |
30 |
26.5 |
30.5 |
70 |
46 |
| X1F90-20-35 |
1TW-20-35SP/P |
R1.1/4"X11 |
35 |
26.5 |
33 |
72.5 |
46 |
| X1F90-24-38 |
1TW-24-38SP/P |
R1.1/2"X11 |
38 |
26.5 |
36 |
77.5 |
50 | |
| |
|
|
|
| |
|
|
