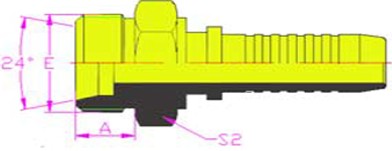

10412公制外螺纹24°内锥面轻系列METRIC MAILE 24° CONE SEAT L.T. |
|
|
|
代 号
PART NO. |
螺纹 E
THREAD E |
胶 管 HOSE BORE |
管子外径
TUBE O.D. |
尺寸 DIMENSIONS |
| 公称内径DN |
标号DASH |
A |
S2 |
| 10412-14-04 |
M14X1.5 |
6 |
1/4" |
04 |
8 |
13 |
17 |
| -14-05 |
M14X1.5 |
8 |
5/16" |
05 |
8 |
13 |
17 |
| -16-04 |
M16X1.5 |
6 |
1/4" |
04 |
10 |
13.5 |
17 |
| -16-05 |
M16X1.5 |
8 |
5/16" |
05 |
10 |
13.5 |
17 |
| -16-06 |
M16X1.5 |
10 |
3/8" |
06 |
10 |
13.5 |
17 |
| -18-05 |
M18X1.5 |
8 |
5/16" |
05 |
12 |
13.5 |
19 |
| -18-06 |
M18X1.5 |
10 |
3/8" |
06 |
12 |
13.5 |
19 |
| -20-08 |
M20X1.5 |
13 |
1/2" |
08 |
14 |
13.5 |
22 |
| -22-06 |
M22X1.5 |
10 |
3/8" |
06 |
15 |
13.5 |
24 |
| -22-08 |
M22X1.5 |
13 |
1/2" |
08 |
15 |
13.5 |
24 |
| -26-08 |
M26X1.5 |
13 |
1/2" |
08 |
18 |
14 |
27 |
| -26-10 |
M26X1.5 |
16 |
5/8" |
10 |
18 |
14 |
27 |
| -27-08 |
M27X1.5 |
13 |
1/2" |
08 |
18 |
14 |
30 |
| -27-10 |
M27X1.5 |
16 |
5/8" |
10 |
18 |
14 |
30 |
| -30-12 |
M32X2 |
19 |
3/4" |
12 |
22 |
18 |
32 |
| -36-12 |
M36X2 |
19 |
3/4" |
12 |
28 |
18 |
41 |
| -36-16 |
M36X2 |
25 |
1" |
16 |
28 |
18 |
41 |
| -42-16 |
M42X1.5 |
25 |
1" |
16 |
33 |
19 |
46 |
| -45-20 |
M45X2 |
32 |
1-1/4" |
20 |
35 |
19 |
46 |
| -52-24 |
M52X2 |
38 |
1-1/2" |
24 |
42 |
19 |
55 | |
| |
|
|
|
| |
|
|
