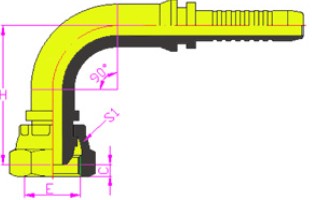

2019190°公制内螺纹球面90°METRIC FEMALE MULTISEAL |
|
|
|
代 号
PART NO. |
螺纹 E
THREAD E |
胶 管 HOSE BORE |
尺寸 DIMENSIONS |
| 公称内径DN |
标号DASH |
C |
S2 |
H |
| 20191-14-04 |
M14X1.5 |
6 |
1/4" |
04 |
4.5 |
19 |
38 |
| -16-05 |
M16X1.5 |
8 |
5/16" |
05 |
4.5 |
22 |
41.5 |
| -18-06 |
M18X1.5 |
10 |
3/8" |
06 |
4 |
24 |
45.3 |
| -22-08 |
M22X1.5 |
12 |
1/2" |
08 |
5 |
27 |
52.5 |
| -27-10 |
M27X1.5 |
16 |
5/8" |
10 |
5.5 |
32 |
58.5 |
| -30-12 |
M30X1.5 |
20 |
3/4" |
12 |
6 |
36 |
68.5 |
 20191
90°公制内螺纹球面
90°METRIC FEMALE MULTISEAL
代 号
PART NO. |
螺纹 E
THREAD E |
胶 管 HOSE BORE |
尺寸 DIMENSIONS |
| 公称内径DN |
标号DASH |
C |
S2 |
H |
| 20191-36-14T |
M36X2 |
22 |
7/8" |
14 |
7 |
41 |
69 |
| -39-16T |
M39X2 |
25 |
1" |
16 |
7 |
46 |
73.5 |
| -45-20T |
M45X2 |
32 |
1-1/4" |
20 |
8.5 |
55 |
85 |
| -52-24T |
M52X2 |
40 |
1-1/2" |
24 |
9 |
60 |
100 |
| -64-32T |
M64X2 |
50 |
2" |
32 |
14 |
75 |
122.3 |
| -90-48T(焊) |
M90X2 |
76 |
3" |
48 |
16 |
100 |
119 | |
| |
|
|
|
| |
|
|
