87313SAE 法兰3000 PSI |
|
|
|
代 号
PART NO. |
螺纹 E
THREAD E |
胶 管 HOSE BORE |
尺寸 DIMENSIONS |
| 公称内径DN |
标号DASH |
D1 |
D 2 |
K |
| 87313-12-12 |
3/4" |
19 |
3/4" |
12 |
38.1 |
31.7 |
7 |
| -16-12 |
1" |
19 |
3/4" |
12 |
44.4 |
38 |
8.2 |
| -16-16 |
1" |
25 |
1" |
16 |
44.4 |
38 |
8.2 |
| -20-16 |
1.1/4" |
25 |
1" |
16 |
50.8 |
43.2 |
8.2 |
| -20-20 |
1.1/4" |
32 |
1-1/4" |
20 |
50.8 |
43.2 |
8.2 |
| -24-20 |
1.1/2" |
32 |
1-1/4" |
20 |
60.3 |
50.3 |
8.2 |
| -24-24 |
1.1/2" |
38 |
1-1/2" |
24 |
60.3 |
50.3 |
8.2 |
| -32-24 |
2" |
38 |
1-1/2" |
24 |
71.4 |
62.2 |
9.8 |
| -32-32 |
2" |
51 |
2" |
32 |
71.4 |
62.2 |
9.8 |

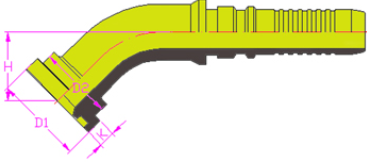

87343
45°SAE 法兰3000 PSI
45°SAE FEMALE 3000 PSI
代 号
PART NO. |
螺纹 E
THREAD E |
胶 管 HOSE BORE |
尺寸 DIMENSIONS |
| 公称内径DN |
标号DASH |
D1 |
H |
D 2 |
K |
| 87343-12-12 |
3/4" |
19 |
3/4" |
12 |
38.1 |
29.6 |
37.7 |
7 |
| -16-12 |
1" |
19 |
3/4" |
12 |
44.4 |
29.6 |
38 |
8.2 |
| -16-16 |
1" |
25 |
1" |
16 |
44.4 |
30.4 |
38 |
8.2 |
| -20-16 |
1.1/4" |
25 |
1" |
16 |
50.8 |
30.4 |
43.2 |
8.2 |
| -20-20 |
1.1/4" |
32 |
1-1/4" |
20 |
50.8 |
34.5 |
43.2 |
8.2 |
| -24-20 |
1.1/2" |
32 |
1-1/4" |
20 |
60.3 |
34.5 |
50.3 |
8.2 |
| -24-24 |
1.1/2" |
38 |
1-1/2" |
24 |
60.3 |
38 |
50.3 |
8.2 |
| -32-24 |
2" |
38 |
1-1/2" |
24 |
71.4 |
42 |
62.2 |
9.8 |
| -32-32 |
2" |
51 |
2" |
32 |
71.4 |
49.1 |
62.2 |
9.8 | |
| |
|
|
|
| |
|
|
