扣压式标准套筒 |
|
|
|
00210
SAE100R2AT/DIN20022 2SN胶管套筒
FERRULE FOR SAE100R2AT/DIN20022 2SN HOSE
|
代号
PART NO. |
胶管 HOSE BORE |
尺寸 DIMENSIONS |
|
公称内径 DN |
标号 DASH |
D |
L |
| 00210-03 |
4 |
03 |
20.6 |
27 |
| -04 |
6 |
04 |
22.2 |
30 |
| -05 |
8 |
05 |
23 |
31 |
| -06 |
10 |
06 |
25 |
32 |
| -08 |
12 |
08 |
28.3 |
34 |
| -10 |
16 |
10 |
31.5 |
37 |
| -12 |
20 |
12 |
35.5 |
43 |
| -16 |
25 |
16 |
45 |
50 |
| -20 |
32 |
20 |
55 |
59 |
| -24 |
40 |
24 |
62.5 |
74 |
| -32 |
50 |
32 |
75.5 |
78 |
|
代号
PART NO. |
胶管 HOSE BORE |
尺寸 DIMENSIONS |
|
公称内径 DN |
标号 DASH |
D |
L |

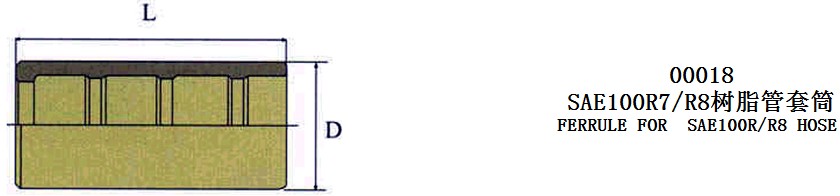

| 00018-03 |
4 |
03 |
14.2 |
27 |
| -04 |
6 |
04 |
17 |
29 |
| -05 |
8 |
05 |
18.8 |
31 |
| -06 |
10 |
06 |
21 |
31 |
| -08 |
12 |
08 |
25.5 |
34 |
| -12 |
20 |
12 |
33 |
43 | |
| |
|
|
|
| |
|
|
