X1A6-K60°公制外螺纹/60°公制外螺纹 |
|
|
|
|
代 号
PART NO. |
永华代 号
WINNERPART NO. |
螺 纹 THREAD |

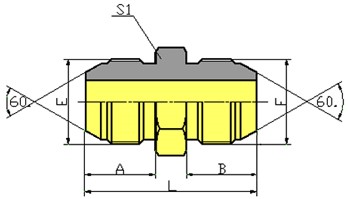

尺 寸 DIMENSIONS |
|
E |
F |
A |
B |
S1 |
L |
| X1A6-14K |
1K-14 |
M14X1.5 |
M14X1.5 |
15.5 |
15.5 |
17 |
37 |
| X1A6-16K |
1K-16 |
M16X1.5 |
M16X1.5 |
16 |
16 |
17 |
38 |
| X1A6-18K |
1K-18 |
M18X1.5 |
M18X1.5 |
18 |
18 |
19 |
42 |
| X1A6-22K |
1K-22 |
M22X1.5 |
M22X1.5 |
20 |
20 |
24 |
48 |
| X1A6-24K |
1K-24 |
M24X1.5 |
M24X1.5 |
22 |
22 |
27 |
54 |
| X1A6-30K |
1K-30 |
M30X1.5 |
M30X1.5 |
23 |
23 |
32 |
57 |
| X1A6-33K |
1K-33 |
M33X1.5 |
M33X1.5 |
27 |
27 |
36 |
65 | |
| |
|
|
|
| |
|
|
