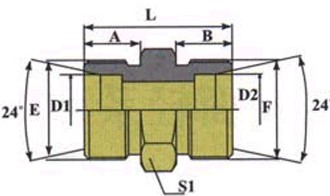

X1A5公制外螺纹24°内锥面重系列 |
|
|
|
|
代 号
PART NO. |
永华代 号
WINNER PART NO. |
螺纹 THREAD |
管子外径TUBE O.D. |
尺寸 DIMENSIONS |
| E |
F |
D1 |
D2 |
A |
B |
S1 |
L |
| X1A5-14 |
1D-14 |
M14X1.5 |
M14X1.5 |
6 |
6 |
12 |
12 |
17 |
30 |
| X1A5-16 |
-16 |
M16X1.5 |
M16X1.5 |
8 |
8 |
12 |
12 |
17 |
32 |
|
X1A5-18 |
-18 |
M18X1.5 |
M18X1.5 |
10 |
10 |
12 |
12 |
19 |
33 |
| X1A5-20 |
-20 |
M20X1.5 |
M20X1.5 |
12 |
12 |
12 |
12 |
22 |
34 |
| X1A5-20-24 |
-20-24 |
M20X1.5 |
M24X1.5 |
12 |
16 |
12 |
14 |
27 |
37.5 |
| X1A5-20-52 |
-20-52 |
M20X1.5 |
M52X2 |
12 |
38 |
12 |
22 |
55 |
50.5 |
| X1A5-22 |
-22 |
M22X1.5 |
M22X1.5 |
14 |
14 |
14 |
14 |
24 |
38 |
| X1A5-24 |
-24 |
M24X1.5 |
M24X1.5 |
16 |
16 |
14 |
14 |
27 |
38 |
| X1A5-24-30 |
-24-30 |
M24X1.5 |
M30X2 |
16 |
20 |
14 |
16 |
32 |
42 |
| X1A5-30 |
-30 |
M30X2 |
M30X2 |
20 |
20 |
16 |
16 |
32 |
44 |
| X1A5-30-36 |
-30-36 |
M30X2 |
M36X2 |
20 |
25 |
16 |
18 |
41 |
48 |
| X1A5-36 |
-36 |
M36X2 |
M36X2 |
25 |
25 |
18 |
18 |
41 |
50 |
| X1A5-42 |
-42 |
M42X2 |
M42X2 |
30 |
30 |
20 |
20 |
46 |
54 |
| X1A5-52 |
-52 |
M52X2 |
M52X2 |
38 |
38 |
22 |
22 |
55 |
61 |
注：订货时若需卡套及卡套螺母则在整个代号后加“RN”。 |
| |
|
|
|
| |
|
|
