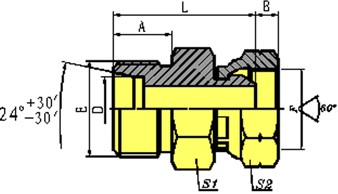

X2B46公制外螺纹24°轻系列/英管内螺纹 60° 外锥面 |
|
|
|
|
代 号
PART NO. |
永华代 号
WINNER PART NO. |
螺 纹 THREAD |
管子外径 TUBE O.D |
尺 寸 DIMENSIONS |
|
E |
F |
D |
A |
B |
S1 |
S2 |
L |
| X2B46-12-02 |
2CB-12-02 |
M12X1.5 |
G1/8"X28 |
6 |
11 |
5.5 |
14 |
14 |
26 |
| X2B46-14-04 |
2CB-14-04 |
M14X1.5 |
G1/4"X19 |
8 |
13 |
5.5 |
17 |
19 |
30.5 |
| X2B46-16-04 |
2CB-16-04 |
M16X1.5 |
G1/4"X19 |
10 |
13.5 |
5.5 |
17 |
19 |
30.5 |
| X2B46-16-06 |
2CB-16-06 |
M16X1.5 |
G3/8"X19 |
10 |
13.5 |
6.3 |
17 |
22 |
32 |
| X2B46-16-08 |
2CB-16-08 |
M16X1.5 |
G1/2"X14 |
10 |
13.5 |
7.5 |
19 |
27 |
33.5 |
| X2B46-18-06 |
2CB-18-06 |
M18X1.5 |
G3/8"X19 |
12 |
13.5 |
6.3 |
19 |
22 |
32 |
| X2B46-22-08 |
2CB-22-08 |
M22X1.5 |
G1/2"X14 |
15 |
13.5 |
7.5 |
24 |
27 |
35.5 |
| X2B46-26-08 |
2CB-26-08 |
M26X1.5 |
G1/2"X14 |
18 |
14 |
7.5 |
27 |
27 |
38 |
| X2B46-30-12 |
2CB-30-12 |
M30X2 |
G3/4"X14 |
22 |
18 |
10.9 |
32 |
32 |
44 |
| X2B46-36-16 |
2CB-36-16 |
M36X2 |
G1"X11 |
28 |
18 |
11.7 |
38 |
41 |
45 |
| X2B46-45-20 |
2CB-45-20 |
M45X2 |
G1.1/4"X11 |
35 |
19 |
11 |
46 |
50 |
50.5 |
| X2B46-52-24 |
2CB-52-24 |
M52X2 |
G1.1/2"X11 |
42 |
19 |
13 |
55 |
55 |
53 | |
| |
|
|
|
| |
|
|
