X1G68英管外螺纹/美制SAE外螺纹 |
|
|
|
|
代 号
PART NO. |
永华 代 号 WINNER PART NO. |
螺纹 THREAD |
尺 寸 DIMENSIONS |
|
E |
F |
A |
B |
S1 |
L |
| X1G68-04 |
1BP-04 |
G1/4"-19 |
7/16"X20 |
12 |
12.7 |
19 |
31 |
| X1G68-04-06 |
-04-06 |
G1/4"-19 |
5/8"X18 |
12 |
15.7 |
19 |
34 |
| X1G68-06 |
-06 |
G3/8"-19 |
5/8"X18 |
13.5 |
15.7 |
22 |
37 |
| X1G68-06-10 |
-06-10 |
G3/8"-19 |
7/8"X14 |
13.5 |
22.4 |
24 |
44 |
| X1G68-08 |
-08 |
G1/2"-14 |
3/4"X16 |
16 |
19 |
27 |
45 |
| X1G68-10 |
-10 |
G5/8"-14 |
7/8"X14 |
17.5 |
22.4 |
30 |
50 |

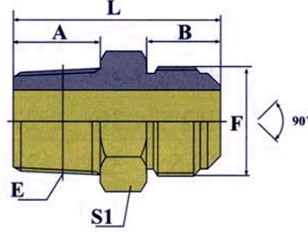

 X1G98
英锥管外螺纹/美制SAE外螺纹
BSPT MALE/SAE MALE
|
代 号
PART NO. |
永 华 代 号
WINNER PART NO. |
螺纹 THREAD |
尺 寸 DIMENSIONS |
|
E |
F |
A |
B |
S1 |
L |
| X1G98-04 |
1TP-04 |
R 1/4"-19 |
7/16"X20 |
14 |
12.7 |
17 |
33 |
| X1G98-04-06 |
-04-06 |
R 1/4"-19 |
5/8"X18 |
14 |
15.7 |
17 |
36 |
| X1G98-06 |
-06 |
R 3/8"-19 |
5/8"X18 |
15 |
15.7 |
19 |
37 |
| X1G98-06-10 |
-06-10 |
R 3/8"-19 |
7/8"X14 |
15 |
22.4 |
24 |
45.5 |
| X1G98-08-06 |
-08-06 |
R 1/2"-14 |
5/8"X18 |
19.5 |
15.7 |
22 |
43.5 |
| X1G98-08 |
-08 |
R 1/2"-14 |
3/4"X16 |
19.5 |
19 |
22 |
46.5 |
| X1G98-08-10 |
-08-10 |
R 1/2"-14 |
7/8"X14 |
19.5 |
22.4 |
24 |
50 |
| X1G98-08-12 |
-08-12 |
R 1/2"-14 |
1.1/16"X14 |
19.5 |
25.4 |
30 |
55 | |
| |
|
|
|
| |
|
|
