X1B52公制外螺纹24°重系列/英管O形圈密封 |
|
|
|
|
代 号
PART NO. |
永华代 号
WINENR PART NO. |
螺纹 THREAD |
管子外径TUBE O.D. |
尺 寸 DIMENSIONS |
|
E |
F |
D |
A |
B |
S1 |
L |
| X1B52-18-04 |
1DG-18-04 |
M18X1.5 |
G1/4"-19 |
10 |
12 |
10 |
19 |
32 |
| X1B52-18-06 |
-18-06 |
M18X1.5 |
G3/8"-19 |
10 |
12 |
11.5 |
22 |
34 |
| X1B52-20-06 |
-20-06 |
M20X1.5 |
G3/8"-19 |
12 |
12 |
11.5 |
22 |
36 |
| X1B52-20-08 |
-20-08 |
M20X1.5 |
G1/2"-14 |
12 |
12 |
14 |
27 |
39 |
| X1B52-22-06 |
-22-06 |
M22X1.5 |
G3/8"-19 |
14 |
14 |
11.5 |
24 |
38.5 |
| X1B52-22-08 |
-22-08 |
M22X1.5 |
G1/2"-14 |
14 |
14 |
14 |
27 |
41 |
| X1B52-24-08 |
-24-08 |
M24X1.5 |
G1/2"-14 |
16 |
14 |
14 |
27 |
41 |
| X1B52-30-12 |
-30-12 |
M30X2 |
G3/4"-14 |
20 |
16 |
15.5 |
32 |
46.5 |
| X1B52-36-12 |
-36-12 |
M36X2 |
G3/4"-14 |
25 |
18 |
15.5 |
38 |
50.5 |
| X1B52-36-16 |
-36-16 |
M36X2 |
G 1"-11 |
25 |
18 |
18 |
41 |
53 |
| X1B52-42-20 |
-42-20 |
M42X2 |
G1.1/4"-11 |
30 |
20 |
20 |
50 |
57 |
| X1B52-52-24 |
-52-24 |
M52X2 |
G1.1/2"-11 |
38 |
22 |
21.5 |
55 |
63.5 |

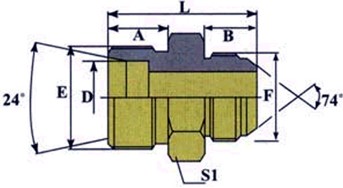

X1C57
公制外螺纹24°重系列/美制JIC外螺纹
METRIC MALE 24°H.T./JIC MALE
|
代 号
PART NO. |
永华代 号
WINNER PART NO. |
螺纹 THREAD |
管子外径TUBE O.D. |
尺 寸 DIMENSIONS |
|
E |
F |
D |
A |
B |
S1 |
L |
| X1C57-18-04 |
1DJ-18-04 |
M18X1.5 |
7/16"X20 |
10 |
12 |
14 |
19 |
34 |
| X1C57-18-05 |
-18-05 |
M18X1.5 |
1/2"X20 |
10 |
12 |
14 |
19 |
34 |
| X1C57-18-06 |
-18-06 |
M18X1.5 |
9/16"X18 |
10 |
12 |
14 |
19 |
34 |
| X1C57-20-06 |
-20-06 |
M20X1.5 |
9/16"X18 |
12 |
12 |
14 |
22 |
36 |
| X1C57-22-06 |
-22-06 |
M22X1.5 |
9/16"X18 |
14 |
14 |
14 |
24 |
38 |
| X1C57-22-08 |
-22-08 |
M22X1.5 |
3/4"X16 |
14 |
14 |
16.7 |
24 |
40.7 |
| X1C57-24-08 |
-24-08 |
M24X1.5 |
3/4"X16 |
16 |
14 |
16.7 |
27 |
40.7 |
| X1C57-30-10 |
-30-10 |
M30X2 |
7/8"X14 |
20 |
16 |
19.3 |
32 |
47.3 |
| X1C57-30-12 |
-30-12 |
M30X2 |
1.1/16"X12 |
20 |
16 |
22 |
32 |
50 |
| X1C57-36-10 |
-36-10 |
M36X2 |
7/8"X14 |
25 |
18 |
19.3 |
41 |
50.5 |
| X1C57-36-12 |
-36-12 |
M36X2 |
1.1/16"X12 |
25 |
18 |
22 |
41 |
53 | |
| |
|
|
|
| |
|
|
